How to evaluate the ‘good of fit’ of an EpiNow2 model run

Author

James Mba Azam

library(EpiNow2)
library(posterior)
library(bayesplot)
library(data.table)
library(scoringutils)
library(dplyr)
library(ggplot2)

Introduction

This is a quick guide on how to assess or evaluate the output of an EpiNow2 model run.

EpiNow2’s uses Stan backend

{EpiNow2} uses the Stan backend for model specification and inference. This means that the model fit can be assessed using the same tools and techniques used for any Stan model. The EpiNow2 package provides a convenient interface to run the models, but the underlying model is a Stan model. The returned fit object is either a <stanfit> or CmdStanModel object, depending on the backend ({rstan} or {cmdstanr}) used. For example, you can use the {bayesplot} and {posterior} packages to visualize and summarize the model diagnostics.

Evaluating or assessing an {EpiNow2} model fit requires a holistic approach involving evaluating the MCMC diagnostics as well as the performance of the forecast against observed data. We will therefore proceed in that regard here.

Let’s start by setting up and running an example model, assessing the MCMC diagnostics, and then evaluating the forecast performance.

Running an example model

Input preparation

This will involve: loading required packages, setting up the model parameters, and running the model.

# Set number of cores for parallel processing.
options(mc.cores = min(4, parallel::detectCores() - 1))


# Set example generation time, incubation period, and reporting delay. In practice, these should use estimates from the literature or be estimated from data.
generation_time <- Gamma(
    shape = Normal(1.3, 0.3),
    rate = Normal(0.37, 0.09),
    max = 14
)

incubation_period <- LogNormal(
    meanlog = Normal(1.6, 0.06),
    sdlog = Normal(0.4, 0.07),
    max = 14
)
reporting_delay <- LogNormal(mean = 2, sd = 1, max = 10)

# Use example case data.

reported_cases <- example_confirmed[1:60]

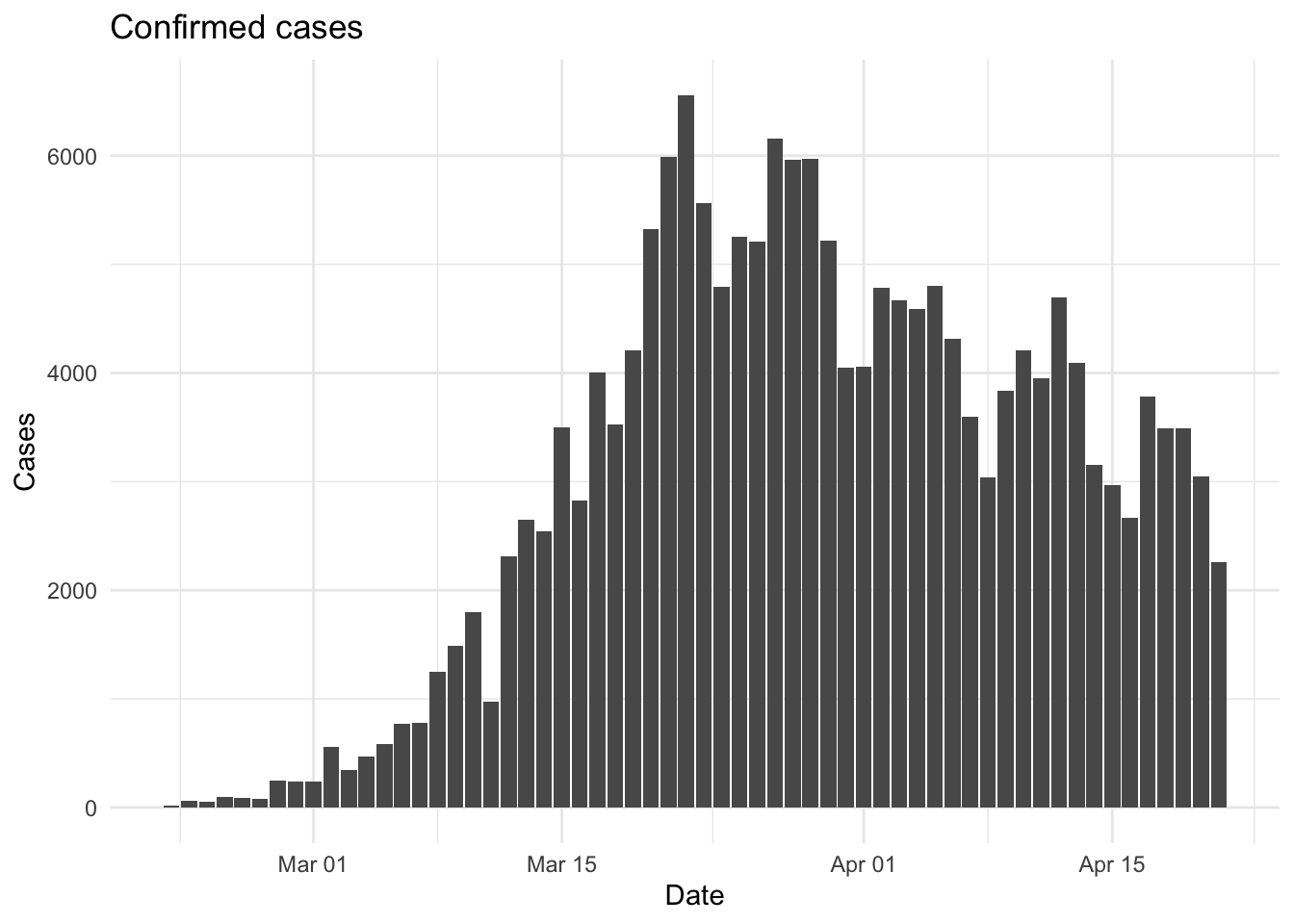

# Plot the data
cases_plots <- ggplot(reported_cases, aes(x = date, y = confirm)) +
    geom_col() +
    labs(title = "Confirmed cases", x = "Date", y = "Cases") +
    theme_minimal()

cases_plots

Fitting the model

Estimate Rt and nowcast/forecast cases by date of infection.

out <- epinow(
    data = reported_cases,
    generation_time = gt_opts(generation_time),
    rt = rt_opts(prior = LogNormal(mean = 2, sd = 0.1)),
    delays = delay_opts(incubation_period + reporting_delay)
)
WARN [2025-08-19 12:21:14] epinow: partial match of 'length' to 'lengths' - $, consecutive, length

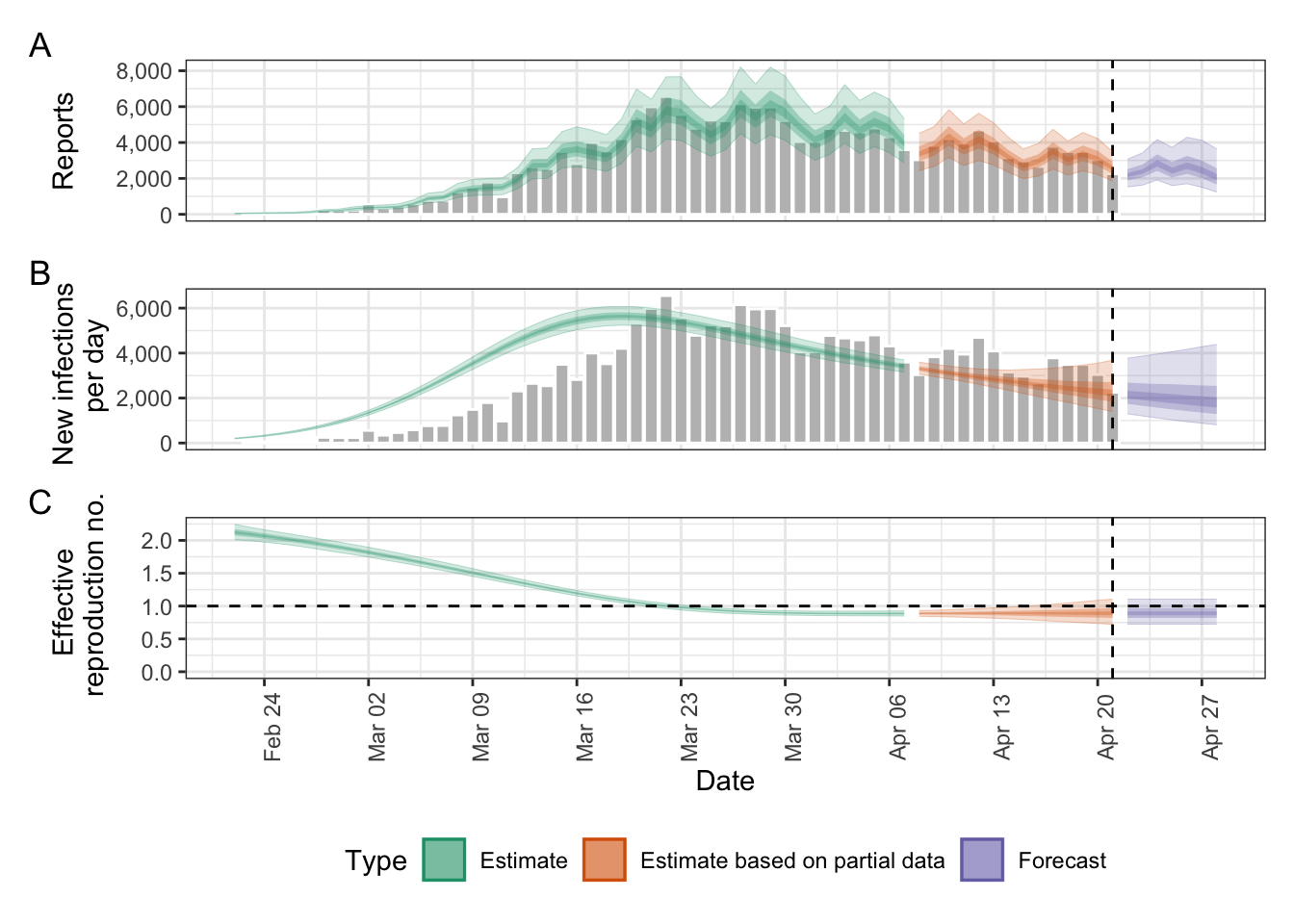

# Plot the model fit
plot(out)

Assessing model diagnostics

We’ll first extract the Stan fit object and compute diagnostics. The epinow() function returns a list of model outputs, including the Stan fit object. This is what we need to assess the model fit. Stan provides diagnostic metrics to assess the model fit, convergence, etc. which we’ll use to assess the model fit. The Stan ecosystem has a rich set of tools for diagnosing model fit, including the bayesplot and posterior packages. These tools provide a way to visualize and summarize the model diagnostics. For an indepth look at MCMC diagnostics, for example, see the bayesplot R package vignette on visual MCMC diagnostics. You can also do posterior predictive checks using the bayesplot package.

Diagnostics include:

  • Divergent transitions. These should be minimized; ideally 0. Divergent transitions can be improved by tuning Stan controls like adapt_delta, max_treedepth, and stepsize in stan_opts(). If there are divergent transitions, increase adapt_delta (e.g., 0.95 or 0.99). See an in‑depth explanation at https://mc-stan.org/learn-stan/diagnostics-warnings.html.
  • Rhat. These should be close to 1 indicating good mixing. Rhat values should be less than 1.05 (See ?rstan::Rhat).
  • Treedepth. This should be low; high values indicate potential issues with the model.
  • ESS values. These should be high; low values indicate insufficient sampling. In particular, both bulk‑ESS and tail‑ESS should be at least ~100 per chain to ensure reliable posterior quantile estimates (see ?rstan::ess_bulk).
fit <- out$estimates$fit

np <- bayesplot::nuts_params(fit)
divergence_data <- subset(np, Parameter == "divergent__")
treedepth_data <- subset(np, Parameter == "treedepth__")

posterior_summary <- posterior::summarize_draws(
    fit, c(posterior::default_convergence_measures(), "ess_basic")
) |> subset(variable != "lp__")

fit_ess_basic <- min(posterior_summary$ess_basic, na.rm = TRUE)
fit_ess_bulk <- min(posterior_summary$ess_bulk, na.rm = TRUE)
fit_ess_tail <- min(posterior_summary$ess_tail, na.rm = TRUE)

diagnostics <- data.table(
    "samples" = nrow(np) / length(unique(np$Parameter)),
    "max_rhat" = round(max(posterior_summary$rhat, na.rm = TRUE), 3),
    "divergent_transitions" = sum(divergence_data$Value),
    "per_divergent_transitions" = mean(divergence_data$Value),
    "max_treedepth" = max(treedepth_data$Value),
    "ess_basic" = fit_ess_basic,
    "ess_bulk" = fit_ess_bulk,
    "ess_tail" = fit_ess_tail
)

diagnostics[, no_at_max_treedepth :=
                sum(treedepth_data$Value == max_treedepth)
][, per_at_max_treedepth := no_at_max_treedepth / samples]

knitr::kable(diagnostics)
samples max_rhat divergent_transitions per_divergent_transitions max_treedepth ess_basic ess_bulk ess_tail no_at_max_treedepth per_at_max_treedepth
2000 1.01 0 0 9 1325.989 1277.945 1109.327 837 0.4185

Evaluating forecast performance

Forecast performance can be evaluated by comparing the forecast of reported cases with the observed cases using Proper Scoring Rules[Gneiting and Raftery (2007);Carvalho (2016);@] such as the Continuous Ranked Probability Score (CRPS) and Weighted Interval Score (WIS). These are available via the scoringutils::score() function.

The scoringutils::score() function requires a dataset that contains at least the following columns:

  • date: the date of the forecast
  • prediction: forecast values
  • true_value: the observed values
  • quantile: If evaluating quantiles, the quantile of the forecasted values (e.g., median, lower and upper bounds), in ascending order.

Let’s extract and prepare the forecasts and corresponding observed cases for the evaluation.

EpiNow2’s epinow() function returns a list of model outputs, including the forecasts. The forecasts are stored in the out$estimates$forecasts data.table. This contains the forecasted values for each date, including the median and quantiles (lower and upper bounds).

# Extract the forecasts
forecasts <- out$estimates$summarised[variable == "reported_cases"][type == "forecast", ] %>%
    select(-c(mean, sd, variable, strat, type))

We’ll also extract the corresponding observed data and clean up the quantiles into a format suitable for use with scoringutils. The forecasts data.table contains the forecasted values for each date, including the median and quantiles (lower and upper bounds). The quantiles are stored in columns named lower_20, upper_20, etc., where the number indicates the quantile level (e.g., 50% for the median).

# Extract observed cases for the same period
obs_data <- example_confirmed[date >= min(forecasts$date) & date <= max(forecasts$date)]

# Combine forecasts with observed cases
eval_dt <- merge(forecasts, obs_data, by = "date")[, true_value := confirm][, confirm := NULL]

# Melt the data to long format
cols_to_melt <- c("median", grep("^(lower|upper)_", names(eval_dt), value = TRUE))
eval_long <- melt(
    eval_dt,
    id.vars = setdiff(names(eval_dt), cols_to_melt),
    measure.vars = cols_to_melt,
    variable.name = "prediction",
    value.name = "value"
)

# Prepare the evaluation data
eval_long[, quantile := fifelse(
  prediction == "median", 0.5,
  fifelse(
    grepl("^lower_", prediction),
    (1 - as.numeric(sub("lower_", "", prediction)) / 100) / 2,
    fifelse(
      grepl("^upper_", prediction),
      (1 + as.numeric(sub("upper_", "", prediction)) / 100) / 2,
      NA_real_
    )
  )
)][, prediction := value][, value := NULL]

# Sort the data by quantile
setorder(eval_long, quantile) %>%
    head(10)
          date true_value prediction quantile
        <Date>      <num>      <num>    <num>
 1: 2020-04-22       2729    1526.00     0.05
 2: 2020-04-23       3370    1623.90     0.05
 3: 2020-04-24       2646    1911.95     0.05
 4: 2020-04-25       3021    1599.00     0.05
 5: 2020-04-26       2357    1701.95     0.05
 6: 2020-04-27       2324    1507.00     0.05
 7: 2020-04-28       1739    1237.85     0.05
 8: 2020-04-22       2729    1895.00     0.25
 9: 2020-04-23       3370    2056.75     0.25
10: 2020-04-24       2646    2420.00     0.25

Now we can use the scoringutils package to compute the scores for the forecasts. By default, a range of scores will be computed, including the interval_score, dispersion, underprediction, overprediction, coverage_deviation, bias, and ae_median.

scored_scores <- scoringutils::score(eval_long) %>%
    summarise_scores()
knitr::kable(scored_scores, digits = 3)
date model interval_score dispersion underprediction overprediction coverage_deviation bias ae_median
2020-04-22 Unspecified model 353.429 91.429 262.000 0.000 -0.171 -0.9 542.0
2020-04-23 Unspecified model 663.620 105.477 558.143 0.000 -0.171 -0.9 993.5
2020-04-24 Unspecified model 168.424 138.710 0.000 29.714 0.114 0.5 178.0
2020-04-25 Unspecified model 365.889 129.789 236.100 0.000 -0.171 -0.9 603.5
2020-04-26 Unspecified model 249.103 150.246 0.000 98.857 0.114 0.5 356.0
2020-04-27 Unspecified model 166.162 149.591 0.000 16.571 0.400 0.2 116.0
2020-04-28 Unspecified model 230.661 138.061 0.000 92.600 0.114 0.5 321.0

Interpretation of scores

The table above provides a summary of the forecast performance by metrics. Note that it is hard to make sense of the scores currently as they are not relative to other models. A proper comparison can only be done against other models.

Comparing against a baseline model

A common practice is to have a baseline model (Stapper and Funk 2025), such as a naive model, and compare the scores of the model against the baseline.

Future updates

In future updates, I will explore more advanced techniques for model diagnostics and evaluation, including posterior predictive checks, cross-validation, and more using packages like loo, shinystan, and bayesplot

References

Carvalho, Arthur. 2016. “An Overview of Applications of Proper Scoring Rules.” Decision Analysis 13 (4): 223–42.
Gneiting, Tilmann, and Adrian E Raftery. 2007. “Strictly Proper Scoring Rules, Prediction, and Estimation.” Journal of the American Statistical Association 102 (477): 359–78.
Stapper, Manuel, and Sebastian Funk. 2025. “Mind the Baseline: The Hidden Impact of Reference Model Selection on Forecast Assessment.” medRxiv, 2025–08.
