TRACEing EpiNow2

Estimating and forecasting infectious disease trends with EpiNow2

Dr. James Mba Azam

Research Software Engineer
Epiverse-TRACE Initiative, London School of Hygiene & Tropical Medicine

2025-08-14

Background

During outbreaks, monitoring and evaluation depend on available reported data (cases, hospitalisations, deaths, etc).
But … reported data often tip of the iceberg.

Issues with reported data

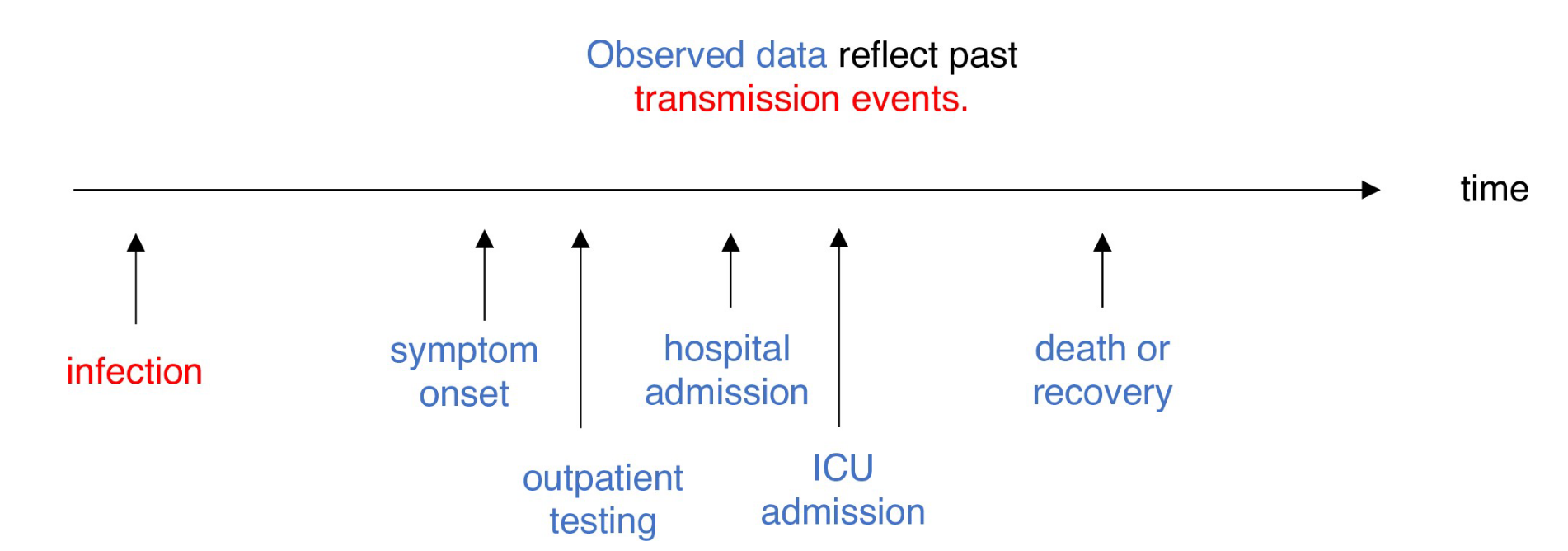

Data delays must be accounted for. Source: Gostic et al., 2020

Using \(R_t\) for better outbreak monitoring and evaluation

Time-varying reproduction number, \(R_t\): average number of secondary infections caused by each infectious individual at time \(t\) in a population where some individuals may not be susceptible.
\(R_t\) can:
- account for delays, and
- reveal variations in transmissibility.
\(R_t\) used to retrospectively and in real-time assess whether an epidemic is increasing, decreasing, or steady.

How do we estimate \(R_t\)?

\[\begin{equation} R_t = \dfrac{I_t}{\sum_{\tau = 1}^{g_\mathrm{max}} g(\tau | \theta_g) I_{t - \tau}} \end{equation}\]

Requires:
- reported cases, \(I\), and
- generation time distribution, \(g(\theta)\): time between primary and secondary infection
Implemented in {EpiNow2} and other packages.

Introducing EpiNow2

What does EpiNow2 do?

Estimates/forecasts:
- infections,
- time-varying reproduction number (\(R_t\)),
- secondary outcomes (hospitalisations, deaths, etc)
- growth rate and doubling time
Simulates:
- infection trajectories,
- secondary outcomes (hospitalisations, deaths, etc)

EpiNow2 implements \(R_t\) estimation best practices

Adjusts for delays and right truncation
Accounts for incomplete data
Uncertainty in generation time distribution
Appropriate smoothing windows

`{EpiNow2}` under the hood

Workhorse: Stan
- Two Stan backends: {rstan} and {cmdstanr}
- Model fitting with stan’s MCMC algorithms
Faster but unstable non-MCMC methods (variational inference, laplace, and pathfinder)

EpiNow2’s model functions

Estimation functions

estimate_infections(): estimate infections and \(R_t\) from reported cases
estimate_secondary(): estimate secondary outcomes (hospitalisations, deaths, etc) from primary observations (cases)
estimate_truncation(): estimate right truncation distribution from vintage/snapshot data for nowcasting

Forecasting functions

forecast_infections(): forecast infections trajectories
forecast_secondary(): forecast secondary outcomes (hospitalisations, deaths, etc) from primary observations (cases)

Simulation functions

simulate_infections(): simulate infections and \(R_t\) from reported cases
simulate_secondary(): simulate secondary outcomes (hospitalisations, deaths, etc) from primary observations (cases)

General workflow

Inputs (data)

data.frame of observations.

         date confirm
       <Date>   <num>
1: 2020-02-22      14
2: 2020-02-23      62
3: 2020-02-24      53
4: 2020-02-25      97
5: 2020-02-26      93
6: 2020-02-27      78

Inputs (other arguments)

Most arguments specified as distributions.
With _opts() function:
- generation time distribution: generation_time_opts()/gt_opts()
- delay distribution: delay_opts()
- observation model: obs_opts()

Distributions specified using EpiNow2's bespoke distribution interface:
- Normal(),
- LogNormal(),
- Gamma(),
- Fixed(), and
- NonParametric()

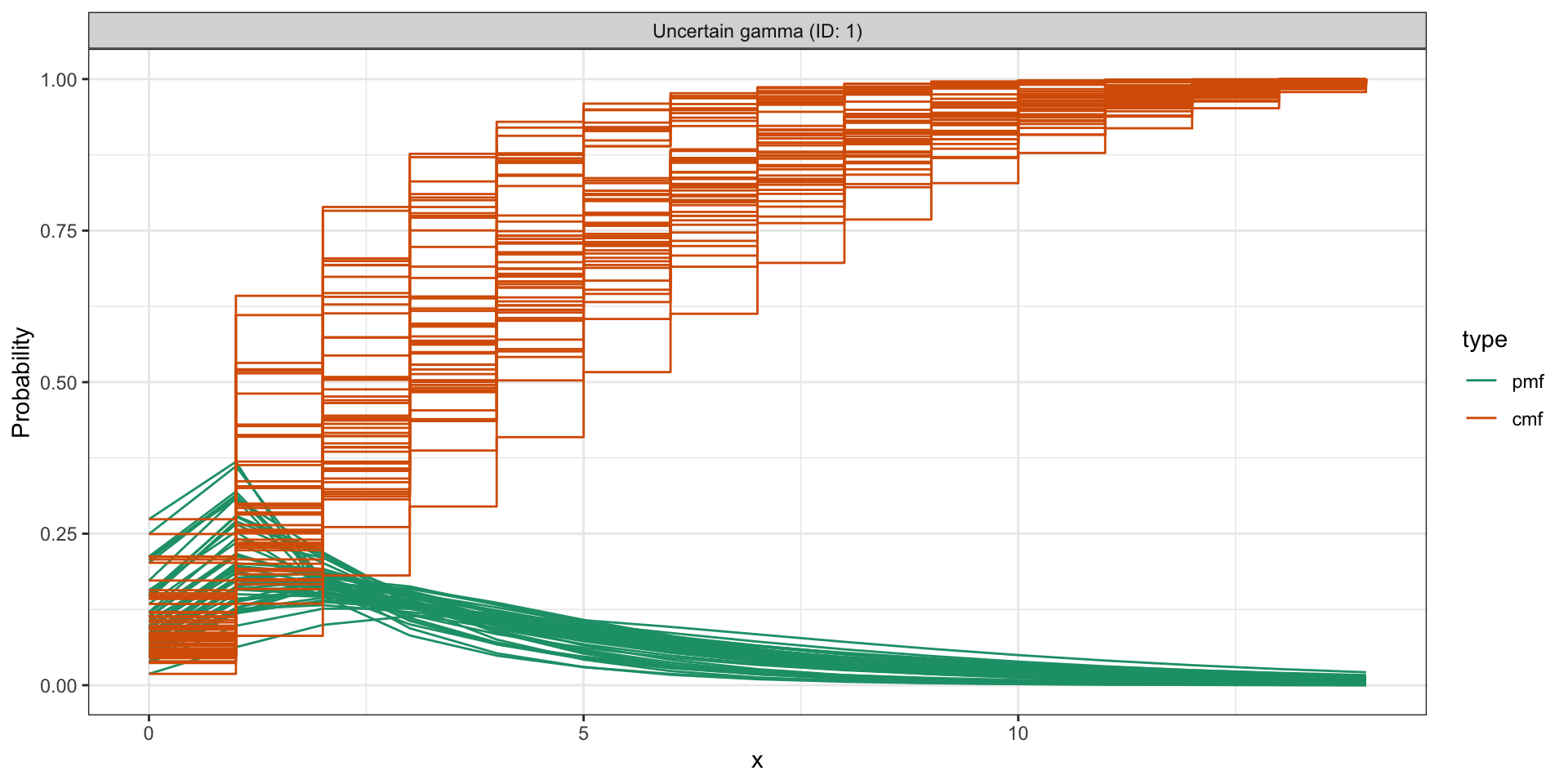

Example uncertain distribution

library(EpiNow2)

# Specify an uncertain distribution
dist_uncertain <- Gamma(
  shape = Normal(1.3, 0.3),
  rate = Normal(0.37, 0.09),
  max = 14
)

# Plot the uncertain distribution
plot(dist_uncertain)

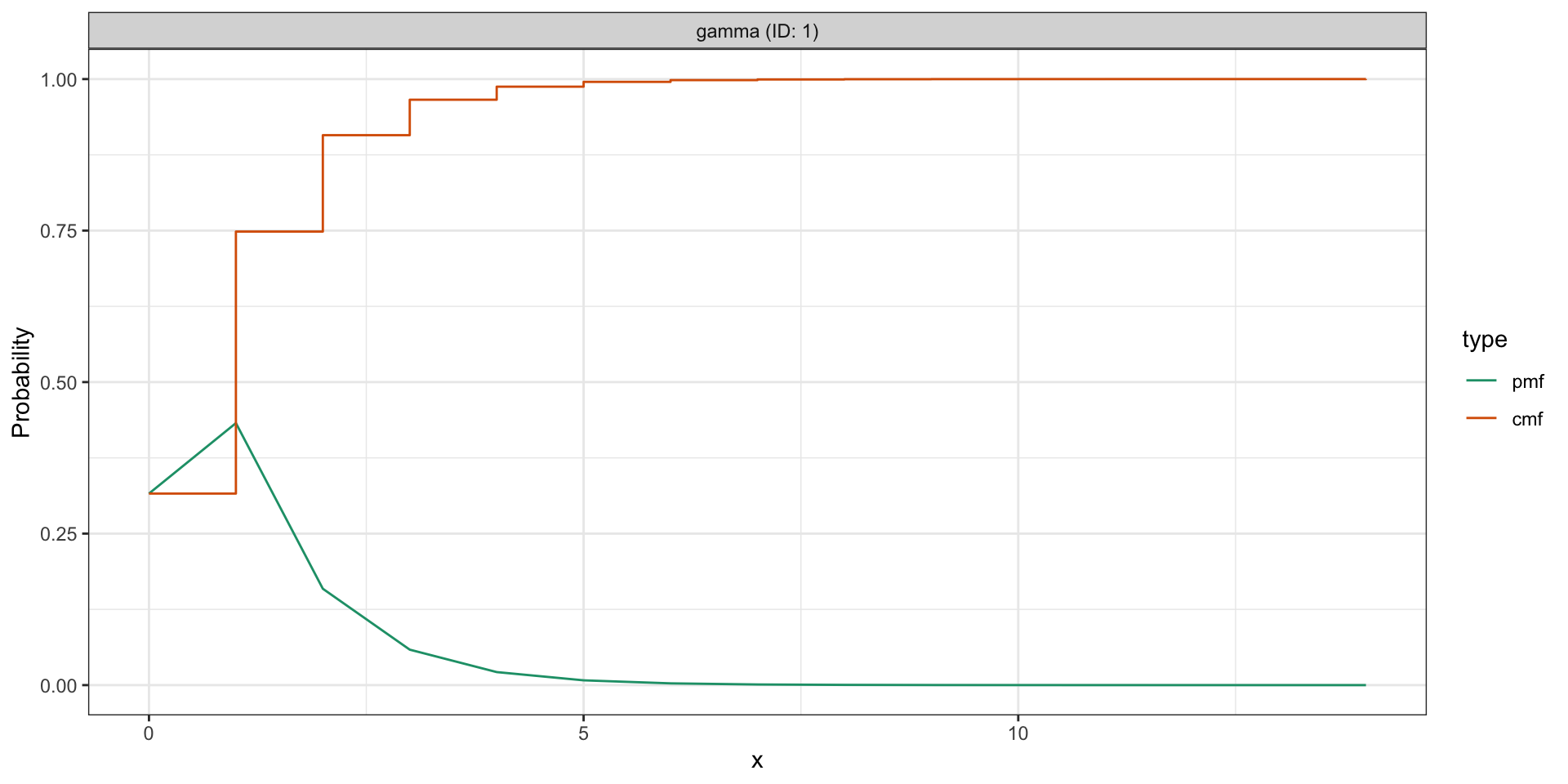

Example certain distribution

library(EpiNow2)

# Specify a certain distribution
dist_certain <- Gamma(
  shape = 1,
  rate = 1,
  max = 14
)
# Plot the distribution
plot(dist_certain)

Models showcase

`estimate_infections()`: estimate infections and \(R_t\) from reported cases

Underlying models

Mechanistic model (Renewal equations model)

\[\begin{equation} I_t = R_t \sum_{\tau = 1}^{g_\mathrm{max}} g(\tau | \theta_g) I_{t - \tau} \end{equation}\]

Non-mechanistic/direct infections model:
- Removes prior on \(R_t\) time evolution.

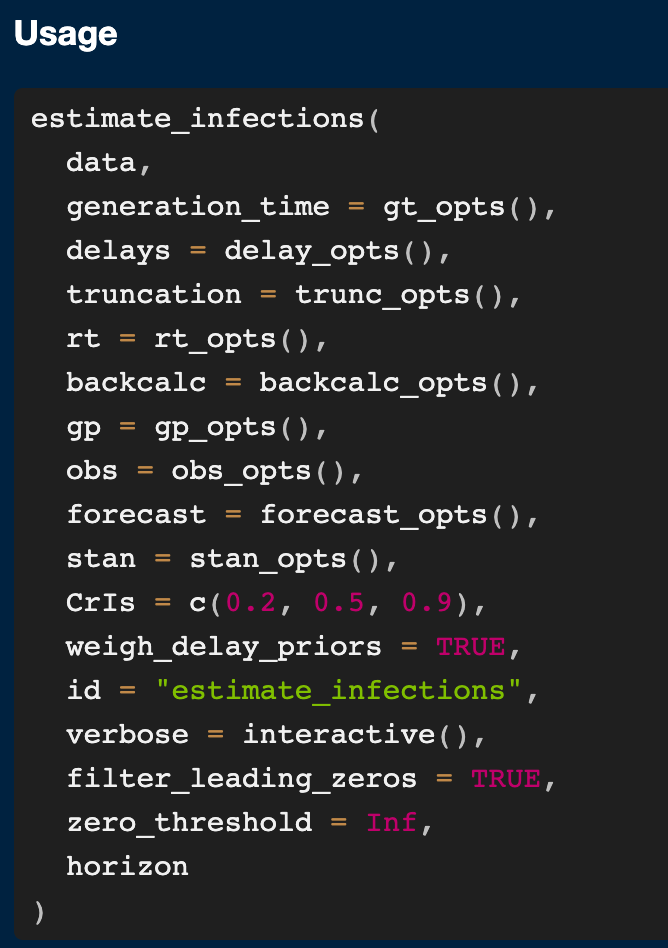

Function signature

Workflow

# load the EpiNow2 package
library(EpiNow2)

# Setup cores for parallel processing
options(mc.cores = min(parallel::detectCores(), 4))

# get example case counts
reported_cases <- example_confirmed[1:60]

# set an example generation time. In practice this should use an estimate
# from the literature or be estimated from data
generation_time <- Gamma(
  shape = Normal(1.3, 0.3),
  rate = Normal(0.37, 0.09),
  max = 14
)
# set an example incubation period. In practice this should use an estimate
# from the literature or be estimated from data
incubation_period <- LogNormal(
  meanlog = Normal(1.6, 0.06),
  sdlog = Normal(0.4, 0.07),
  max = 14
)
# set an example reporting delay. In practice this should use an estimate
# from the literature or be estimated from data
reporting_delay <- LogNormal(mean = 2, sd = 1, max = 10)

# set an example prior for the reproduction number
rt_prior <- LogNormal(mean = 2, sd = 0.1)

# for more examples, see the "estimate_infections examples" vignette
estimate_infections_res <- estimate_infections(
    reported_cases,
    generation_time = gt_opts(generation_time),
    delays = delay_opts(incubation_period + reporting_delay),
    rt = rt_opts(prior = rt_prior)
)

Output (summary)

# print the summary of the output
summary(estimate_infections_res)

                        measure                estimate
                         <char>                  <char>
1:       New infections per day     2219 (1373 -- 3557)
2:   Expected change in reports       Likely decreasing
3:   Effective reproduction no.      0.89 (0.72 -- 1.1)
4:               Rate of growth -0.03 (-0.096 -- 0.033)
5: Doubling/halving time (days)        -23 (21 -- -7.2)

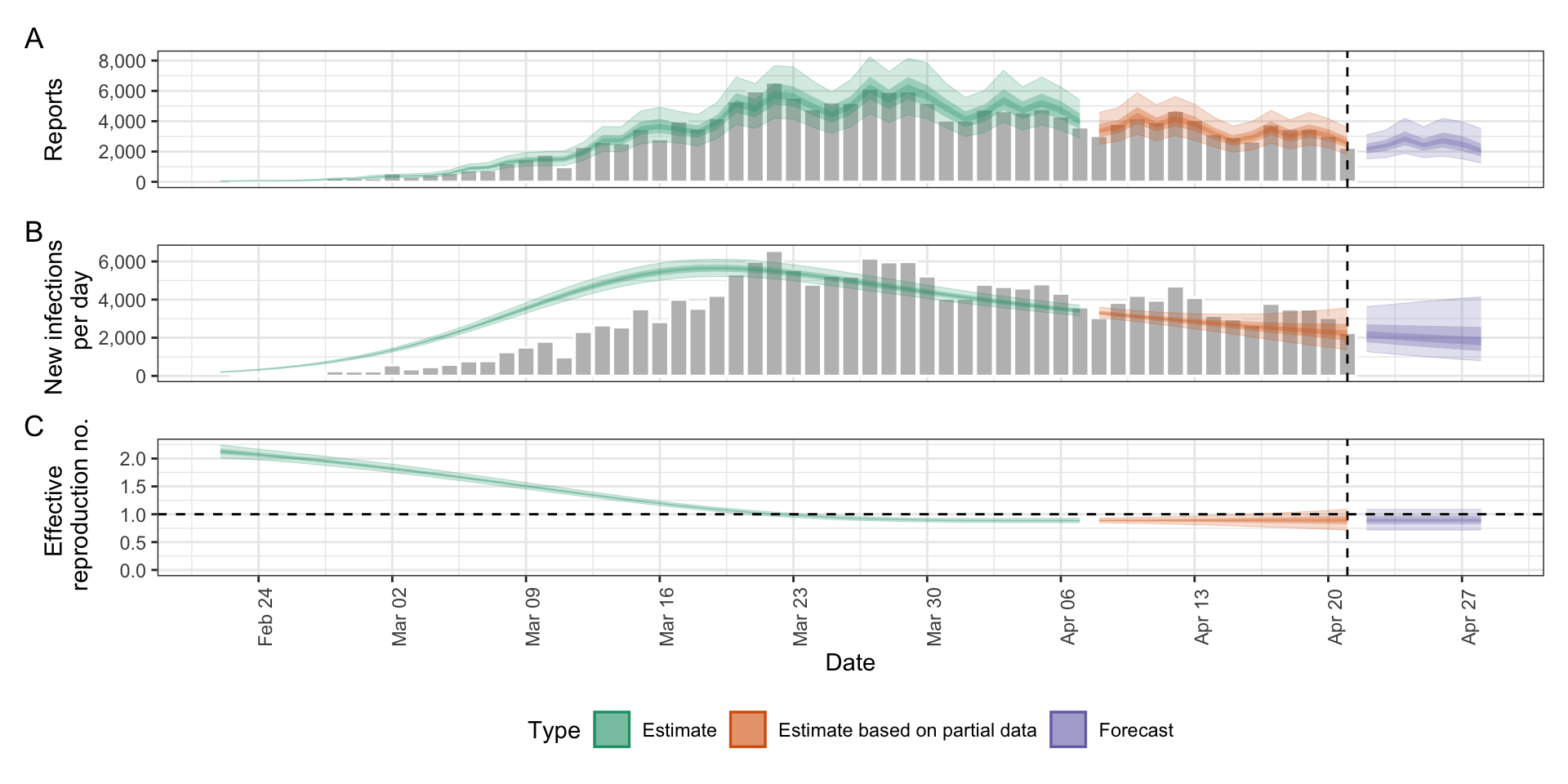

Output (plots)

Note: Plots are ggplot2 objects, so can be customised

plot(estimate_infections_res)

Note: the default model is customisable

Notable:
- Non-mechanistic/direct infections model, set rt = NULL
- Turn off Gaussian process, set gp = NULL
- Don’t adjust for delays (default), equivalent to {EpiEstim} model

Using the non-mechanistic model

# load the EpiNow2 package
library(EpiNow2)

# Setup cores for parallel processing
options(mc.cores = min(parallel::detectCores(), 4))

# for more examples, see the "estimate_infections examples" vignette
estimate_infections_nm_res <- estimate_infections(
    reported_cases,
    generation_time = gt_opts(generation_time),
    delays = delay_opts(incubation_period + reporting_delay),
    rt = NULL # non-mechanistic/direct infections model
)

Output (summary)

# print the summary of the output
summary(estimate_infections_nm_res)

                        measure                  estimate
                         <char>                    <char>
1:       New infections per day       2604 (2551 -- 2646)
2:   Expected change in reports                Decreasing
3:   Effective reproduction no.       0.91 (0.87 -- 0.94)
4:               Rate of growth -0.024 (-0.025 -- -0.022)
5: Doubling/halving time (days)          -29 (-32 -- -28)

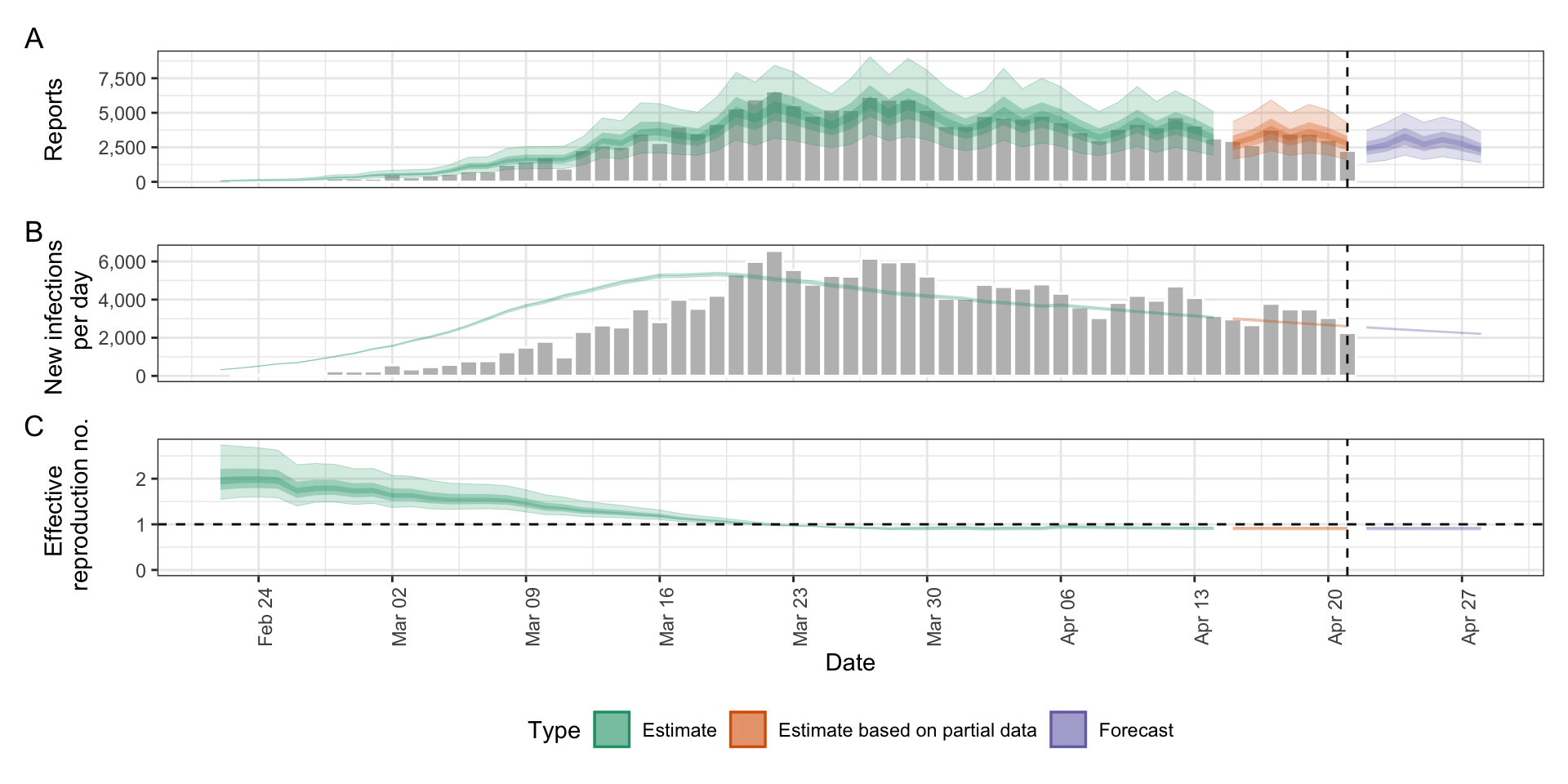

# plot the output
plot(estimate_infections_nm_res)

Modelling temporally aggregated (weekly, monthly, etc) data

{EpiNow2} can also model temporally aggregated data, e.g., weekly or monthly counts.
Data needs to have an accumulate column.
- Use fill_missing() helper function to add accumulate column.

# load the EpiNow2 package
library(EpiNow2)
library(ggplot2)

# Setup cores for parallel processing
options(mc.cores = min(parallel::detectCores(), 4))

# Load example weekly case counts

cases_weekly <- readRDS("data/example_aggregate_data.rds")

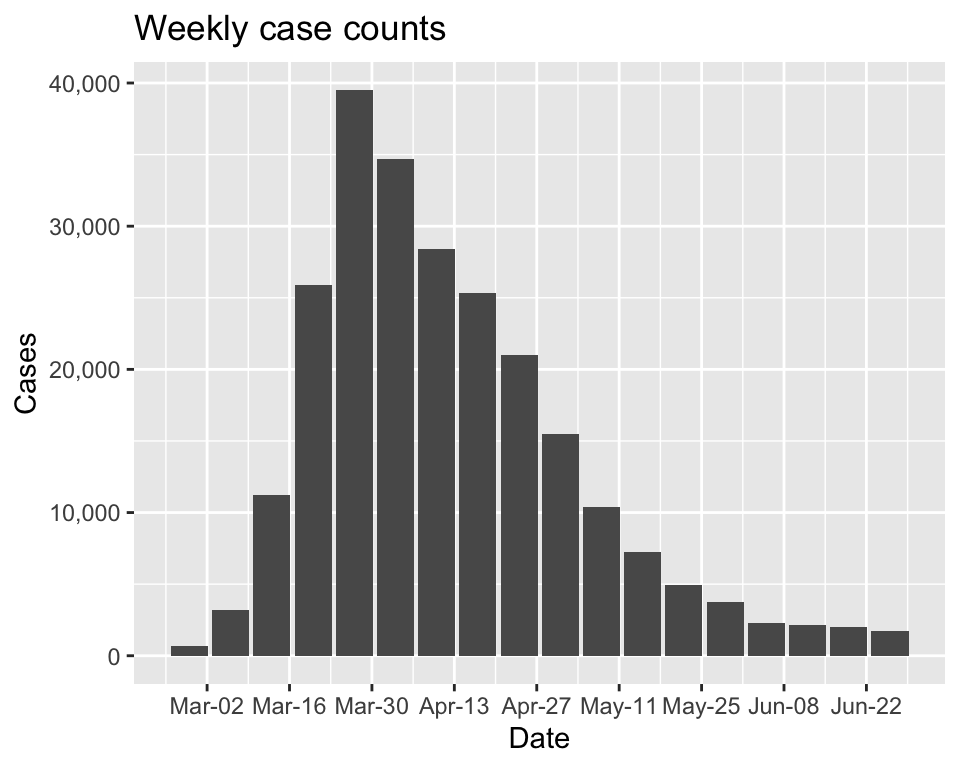

# Visualise the data
p <- ggplot(cases_weekly, aes(x = date, y = confirm)) +
    geom_col() +
    scale_y_continuous(labels = scales::comma) +
    scale_x_date(date_labels = "%b-%d", date_breaks = "2 weeks") +
    labs(title = "Weekly case counts", x = "Date", y = "Cases")

# Create compatible data for EpiNow2
cases_weekly_complete <- fill_missing(
    cases_weekly,
    missing_dates = "accumulate",
    missing_obs = "accumulate"
)

head(cases_weekly_complete, 10)

Key: <date>
          date confirm accumulate
        <Date>   <num>     <lgcl>
 1: 2020-02-22      NA       TRUE
 2: 2020-02-23      NA       TRUE
 3: 2020-02-24      NA       TRUE
 4: 2020-02-25      NA       TRUE
 5: 2020-02-26      NA       TRUE
 6: 2020-02-27      NA       TRUE
 7: 2020-02-28     647      FALSE
 8: 2020-02-29      NA       TRUE
 9: 2020-03-01      NA       TRUE
10: 2020-03-02      NA       TRUE

weekly_est <- estimate_infections(
    cases_weekly_complete,
    generation_time = gt_opts(generation_time),
    delays = delay_opts(incubation_period + reporting_delay),
    rt = rt_opts(prior = rt_prior)
)

Output (summary)

# print the summary of the output
summary(weekly_est)

                        measure                 estimate
                         <char>                   <char>
1:       New infections per day         206 (107 -- 373)
2:   Expected change in reports        Likely decreasing
3:   Effective reproduction no.       0.94 (0.71 -- 1.2)
4:               Rate of growth -0.018 (-0.098 -- 0.055)
5: Doubling/halving time (days)         -38 (13 -- -7.1)

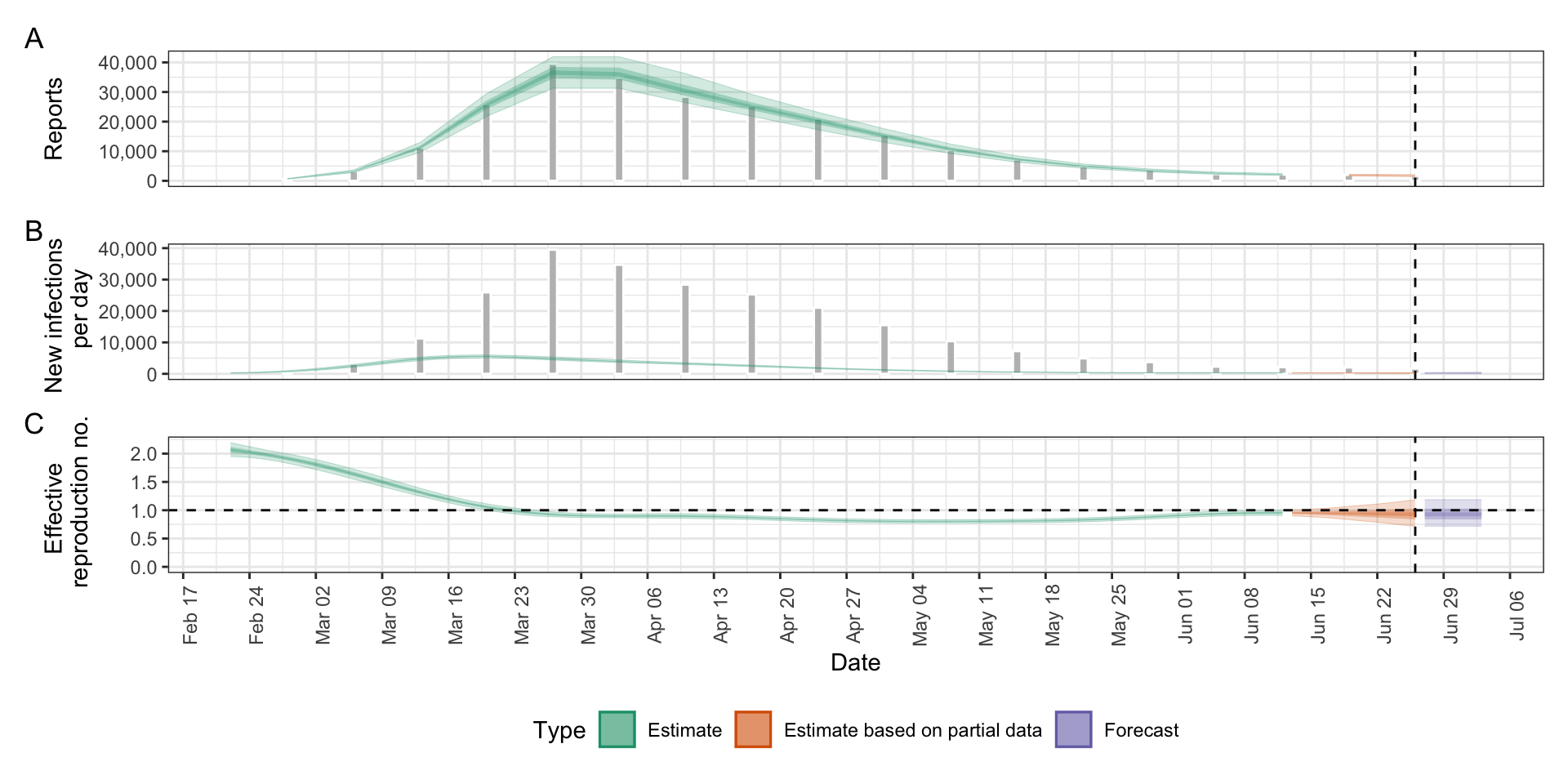

Output (plot)

# Plot the output
plot(weekly_est)

`estimate_secondary()`: estimate secondary observations from primary observations

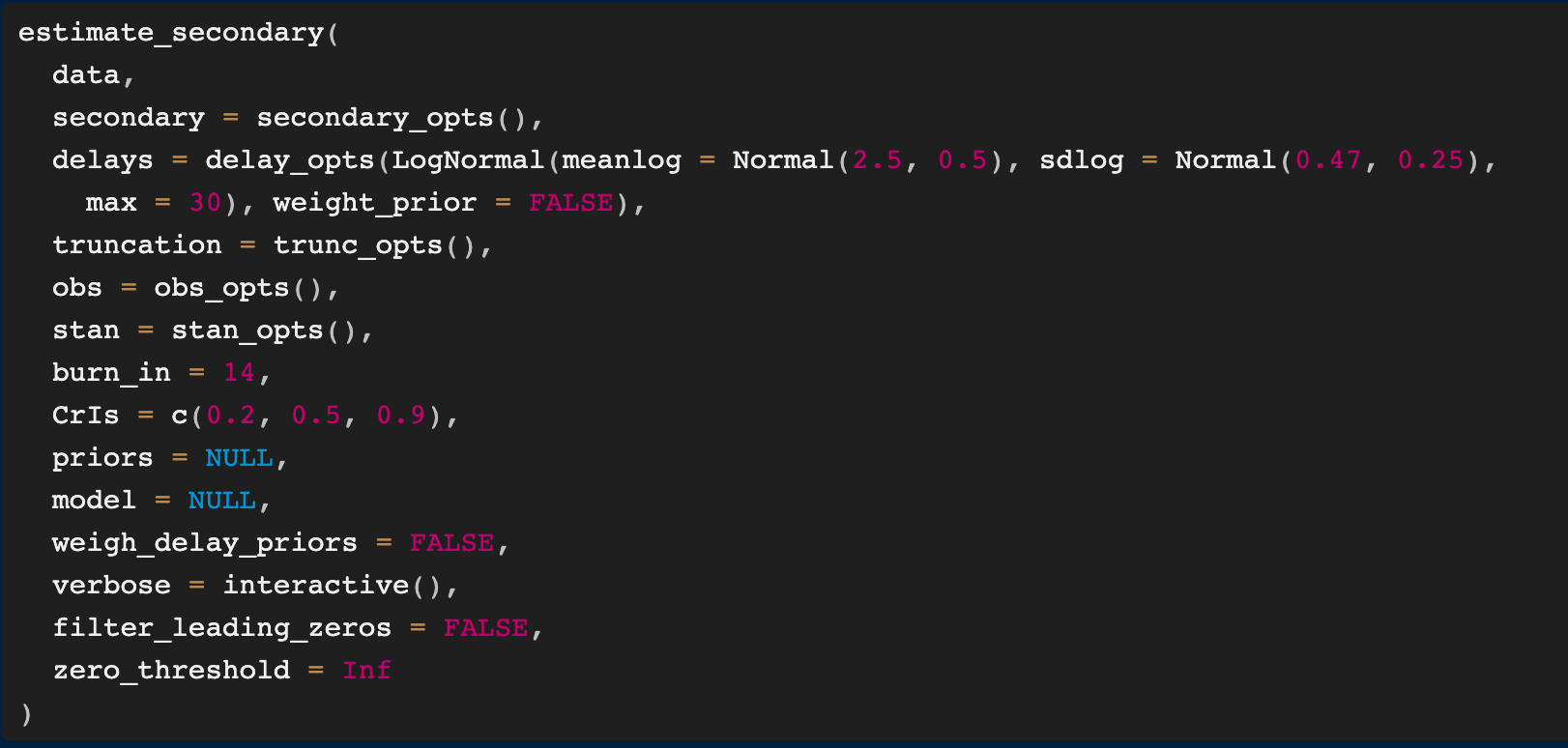

Function signature

Workflow

Incidence relationship, e.g., deaths from cases.

# load packages
library(data.table)
library(EpiNow2)

# Setup cores for parallel processing
options(mc.cores = min(parallel::detectCores(), 4))

#### Incidence data example ####

# Load example secondary incidence data
es_inc_cases <- readRDS("data/example_secondary_incidence_data.rds")
head(es_inc_cases)

         date primary secondary scaling meanlog sdlog index scaled      conv
       <Date>   <num>     <int>   <num>   <num> <num> <int>  <num>     <num>
1: 2020-02-22      14         5     0.4     1.8   0.5     1    5.6  5.600000
2: 2020-02-23      62         5     0.4     1.8   0.5     2   24.8  5.827560
3: 2020-02-24      53         8     0.4     1.8   0.5     3   21.2  8.801043
4: 2020-02-25      97        12     0.4     1.8   0.5     4   38.8 12.938343
5: 2020-02-26      93        16     0.4     1.8   0.5     5   37.2 16.590082
6: 2020-02-27      78        20     0.4     1.8   0.5     6   31.2 20.611478

# fit model to example data specifying a weak prior for fraction reported
# with a secondary case
es_inc_example <- estimate_secondary(
    data = es_inc_cases[1:60],
    secondary = secondary_opts(type = "incidence"),
    obs = obs_opts(
        scale = Normal(mean = 0.2, sd = 0.2),
        week_effect = FALSE
    )
)

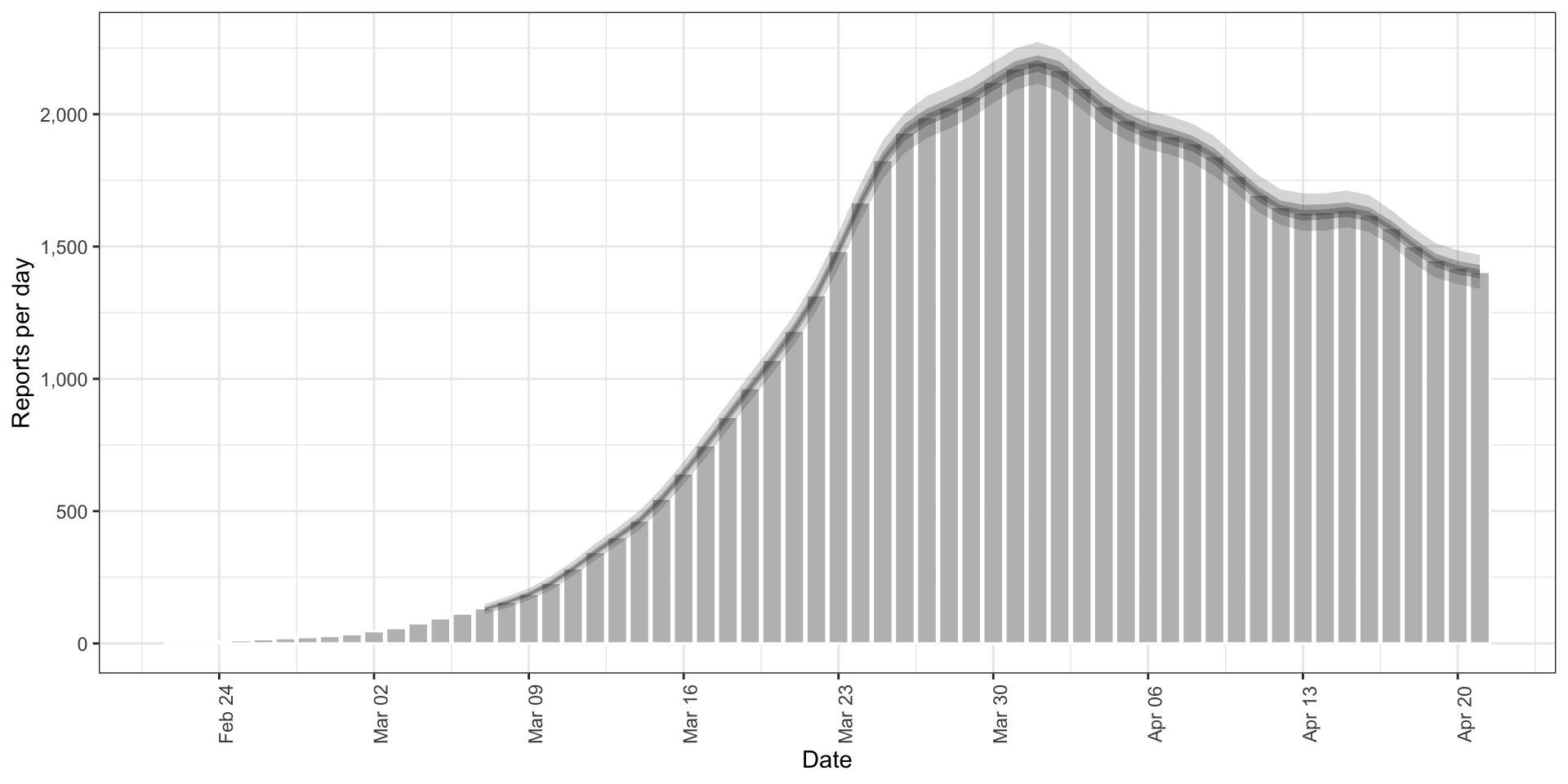

Output (plot)

plot(es_inc_res)

Prevalence relationship, e.g., hospital admissions from cases.

# load packages
library(data.table)
library(EpiNow2)

# Setup cores for parallel processing
options(mc.cores = min(parallel::detectCores(), 4))

#### Prevalence data example ####

# Load example secondary prevalence data
es_prev_cases <- readRDS("data/example_secondary_prevalence_data.rds")
head(es_prev_cases)

         date primary secondary scaling meanlog sdlog index scaled      conv
       <Date>   <num>     <int>   <num>   <num> <num> <int>  <num>     <num>
1: 2020-02-22      14         4     0.3     1.6   0.8     1    4.2  4.200000
2: 2020-02-23      62        18     0.3     1.6   0.8     2   18.6  6.749663
3: 2020-02-24      53        23     0.3     1.6   0.8     3   15.9 10.939618
4: 2020-02-25      97        38     0.3     1.6   0.8     4   29.1 13.765588
5: 2020-02-26      93        49     0.3     1.6   0.8     5   27.9 17.347381
6: 2020-02-27      78        52     0.3     1.6   0.8     6   23.4 20.088300

# fit model to example data specifying a weak prior for fraction reported
# with a secondary case
es_prev_example <- estimate_secondary(
    data = es_prev_cases[1:60],
    secondary = secondary_opts(type = "prevalence"),
    obs = obs_opts(
        scale = Normal(mean = 0.2, sd = 0.2),
        week_effect = FALSE
    )
)

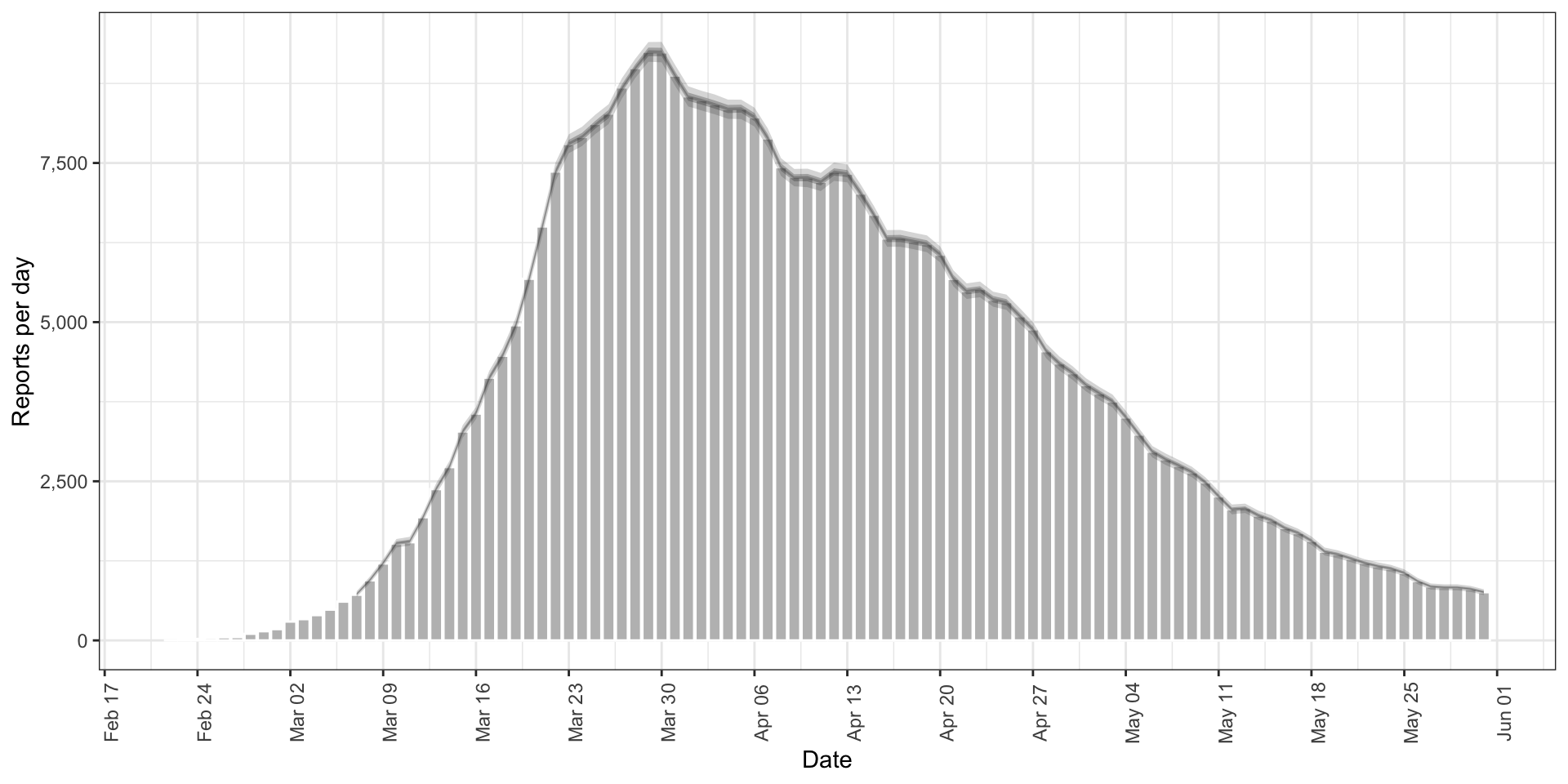

Output (plot)

plot(es_prev_res)

Summary

{EpiNow2} provides a flexible and powerful framework for estimating \(R_t\) and forecasting infectious disease trends.
Package supports various customisations:
- Models can be mechanistic or non-mechanistic models.
- Accounts for delays, right truncation, and propagation of uncertainty in estimates.

This walk through covered estimation functions but not forecasting or simulation functions, which follow similar workflows.

Key take home

Go beyond the defaults
Explore various optimisations:
- Computer hardware (cores),
- non-default models, etc

Resources

EpiNow2 website:
- Function reference, with examples
- Vignettes: model definitions, workflow, model options, etc
- Many applications in outbreak analytics (e.g., Kelly’s talk)

Acknowledgements

{EpiNow2} core developers:
- Prof. Sebastian Funk
- Dr. Sam Abbott
{EpiNow2} contributors
The Epiverse-TRACE and epiforecasts teams

Thank you!

Questions?

TRACEing EpiNow2

Background

Issues with reported data

Using \(R_t\) for better outbreak monitoring and evaluation

How do we estimate \(R_t\)?

Introducing EpiNow2

What does EpiNow2 do?

EpiNow2 implements \(R_t\) estimation best practices

{EpiNow2} under the hood

EpiNow2’s model functions

Estimation functions

Forecasting functions

Simulation functions

General workflow

Inputs (data)

Inputs (other arguments)

Example uncertain distribution

Example certain distribution

Models showcase

estimate_infections(): estimate infections and \(R_t\) from reported cases

Underlying models

Function signature

Workflow

Output (summary)

Output (plots)

Note: the default model is customisable

Using the non-mechanistic model

Output (summary)

Modelling temporally aggregated (weekly, monthly, etc) data

Output (summary)

Output (plot)

estimate_secondary(): estimate secondary observations from primary observations

Function signature

Workflow

Output (plot)

Output (plot)

Summary

Key take home

Resources

Acknowledgements

`{EpiNow2}` under the hood

`estimate_infections()`: estimate infections and \(R_t\) from reported cases

`estimate_secondary()`: estimate secondary observations from primary observations
